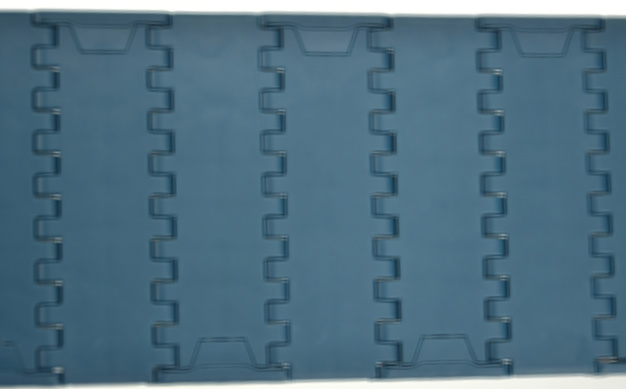

Pitch 1 inch/25.4mm
HJ 1000FT Pitch 1 inch/25.4mm
Thickness:8.7mm
Color: White, Blue, Dark Green
Standard Width: Multiple of 85mm
Optional Width: Added by 10,10…mm based on 255mm
Belt Load: PP=16700N/M; POM=39300N/M
HJ 1000FG Pitch 1 inch/25.4mm
Thickness:8.7mm Open Rate:
Color: White, Blue, Dark Green
Standard Width: Multiple of 85mm
Optional Width: Added by 10,10…mm based on 255mm
Belt Load: PP=16700N/M; POM=39300N/M
HJ 1000 Limited W 85mm
HJ 1000 with baffle
1000 Sprocket
16T Square hole:60x60
18T Square hole:40x40,50x50,60x60; Round hole: Φ30, 40,50,60; Keynote: 3x8mm
22T Square hole:40x40,50x50,60x60; Round hole: Φ30, 40,50,60; Keynote: 3x8mm
