Pitch 2inch/50.8mm 956 Series

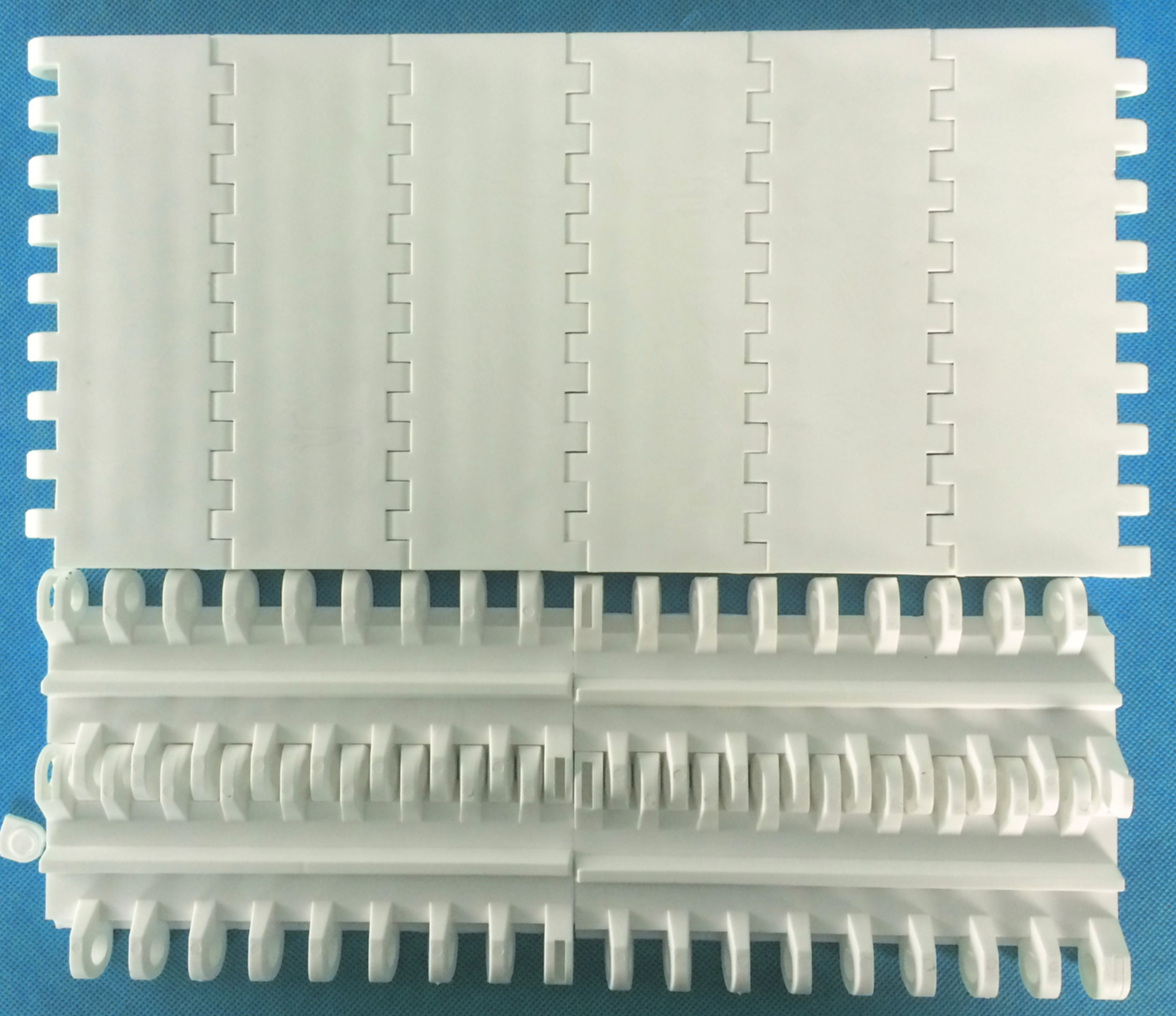

HJ 956 FT Pitch 2inch/50.8mm
Thickness:16mm
Color: White, Blue, Grey
Standard Width: Multiple of 152.4mm
Optional Width: Added by 16.9,16,9…mm based on 152.4mm
Belt Load: PP=2700N/M
HJ 956 FG Pitch 2inch/50.8mm
Thickness:16mm Open Rate:11.6%
Color: White, Blue, Grey
Standard Width: Multiple of 152.4mm
Optional Width: Added by 16.9,16,9…mm based on 152.4mm
Belt Load: PP=2700N/M
HJ 956 FH Pitch 2inch/50.8mm
Thickness:16mm Open Rate:12.2%
Color: White, Blue, Grey
Standard Width: Multiple of 152.4mm
Optional Width: Added by 16.9,16,9…mm based on 152.4mm
Belt Load: PP=2700N/M

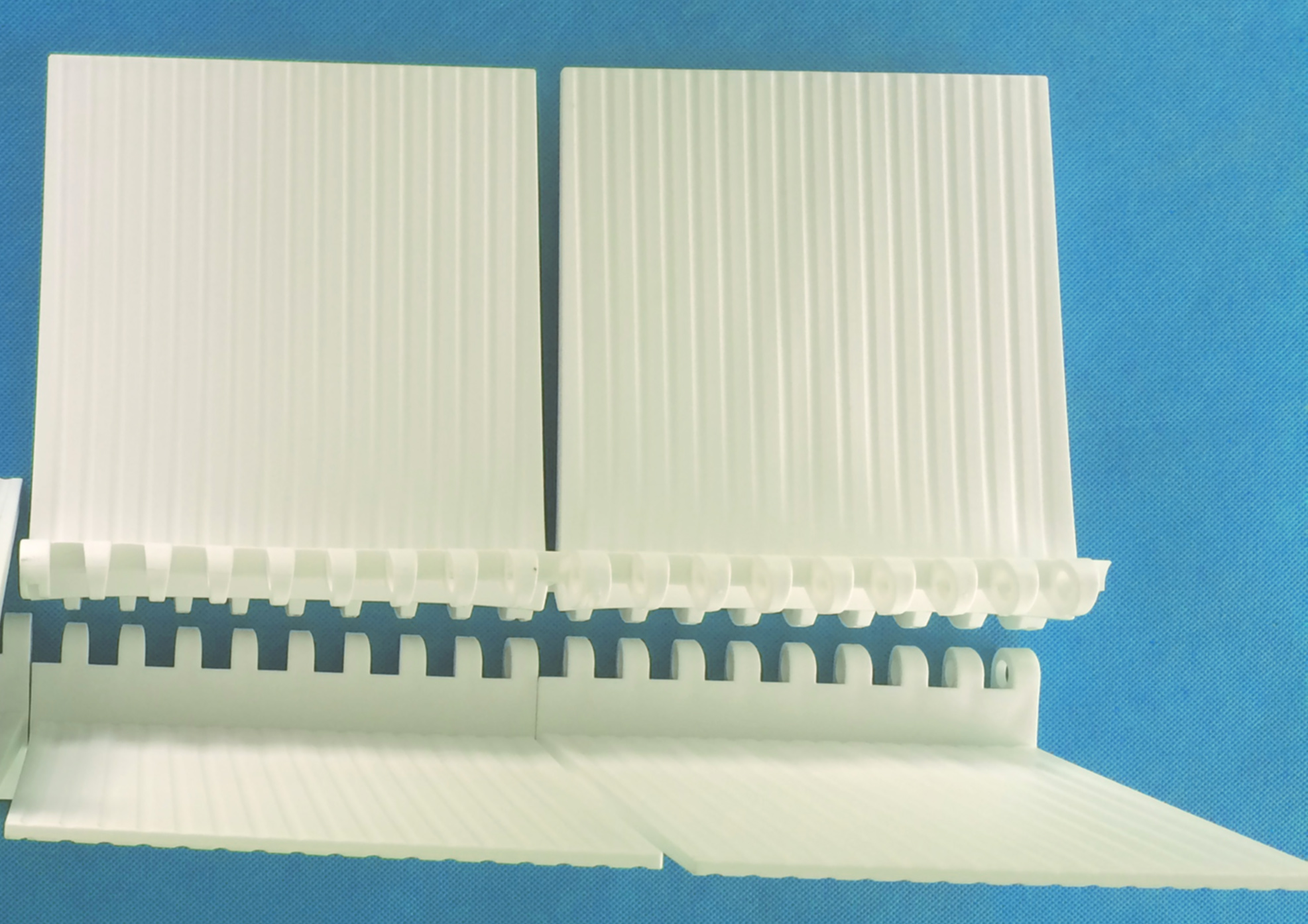

HJ 956 with Baffle and Side Guard Height:150mm
956 Sprocket
8T Square Hole:40 Round Hole: Φ25,30, Keynote: 4x8mm
10T Square Hole:40,50,60 Round Hole: Φ25,30,40,50,60
12T Square Hole:40,50,60 Round Hole: Φ25,30,40,50,60
