Conveyor Foot Basis

Theuniversaladjustingclasswithoutpositioninghole

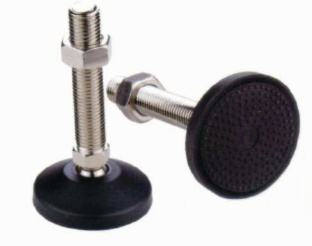

The universal adjusting foot basis without positioning holes

Specification:

Screw Thread Diameter: M8/M10/M12/M14

Screw Length: 30/50/100/150mm

Basis Height: 15/21/25/30mm

Basis Diameter:40/50/60/100mm

Universaladjustingclasswithpositioningholes

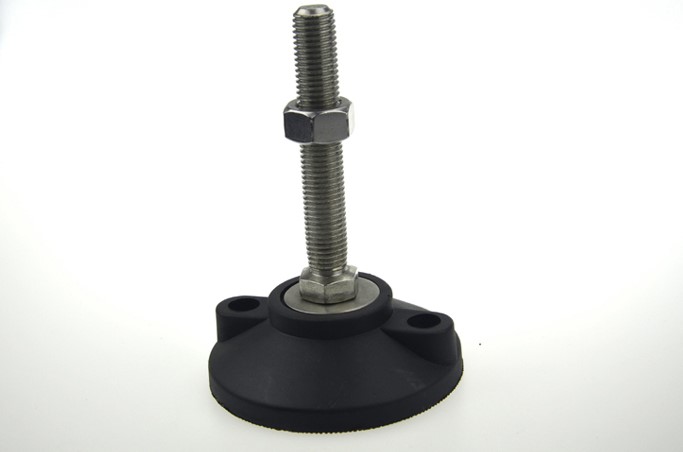

The universal adjusting foot basis with positioning holes

Specification:

Screw Thread Diameter: M8/M10/M12/M14/M16/M18/M20/M22/M24

Screw Length: 30/50/100/150/200mm

Basis Height: 17/29/30/47/52mm

Basis Diameter:80/100/110/140mm

Fixedadjustingfootwithoutpositioninghole

The fixed adjusting foot basis without positioning holes

Specification:

Screw Thread Diameter: M8/M12/M14/M16/M18/M20/M24

Screw Length: 30/50/100/150mm

Basis Height: 21/24/29mm

Basis Diameter:50/60/80mm

Fixedadjustingfootwithpositioninghole

The fixed adjusting foot basis with positioning holes

Specification:

Screw Thread Diameter: M14/M16/M18/M20/M24

Screw Length: 50/100/150mm

Basis Height: 33mm

Basis Diameter:100mm
